CLAY BONDED SAND LABORATORY

Foundry Equipment

Model MM

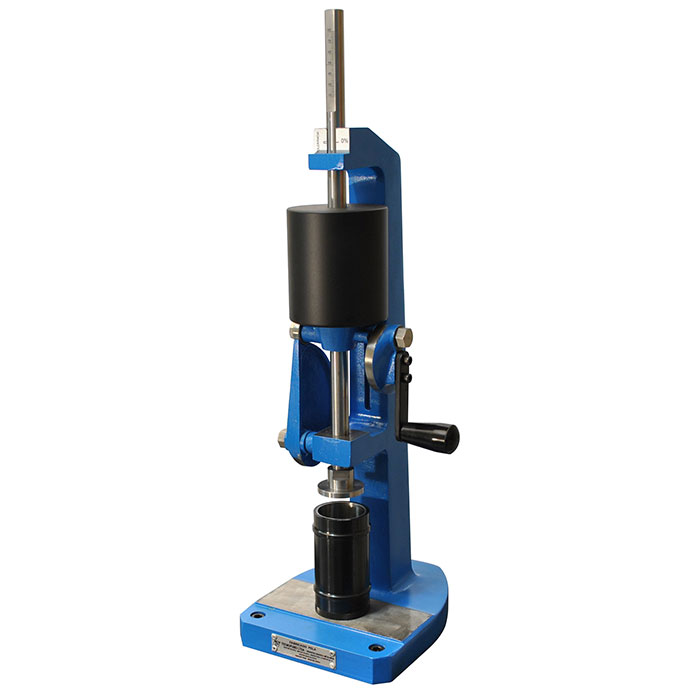

SAND RAMMER

Used to prepare specimens for many standar tests and for compactability test of foundry sands.

SPECIFICATIONS
  • Measuring range: 20 – 100 %
  • Range resolution: 1 %
  • Constructed of cast iron and movable parts of stainless steel
  • Direct readind scale
  • Includes specimen tube and conditioner.
  • Weight: 30 kg (66 lb)

Base casting not included

ACCESSORIES:

MRUD-NET-04
MRUD-NET-01
MRUD-NET-02
MRUD-NET-03

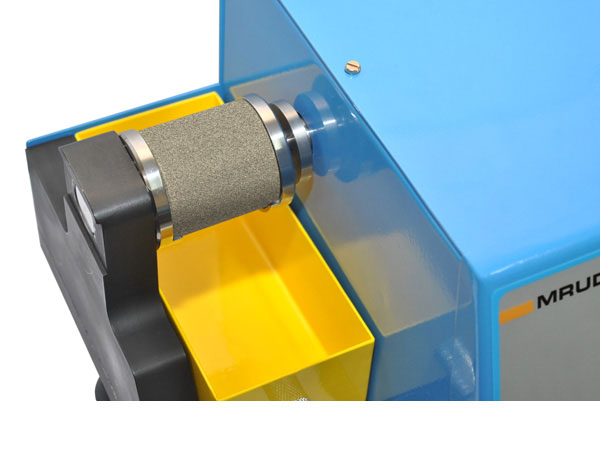

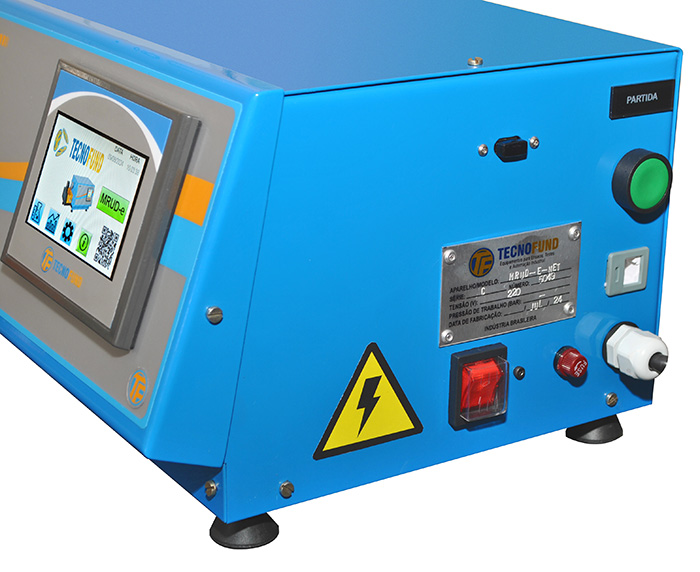

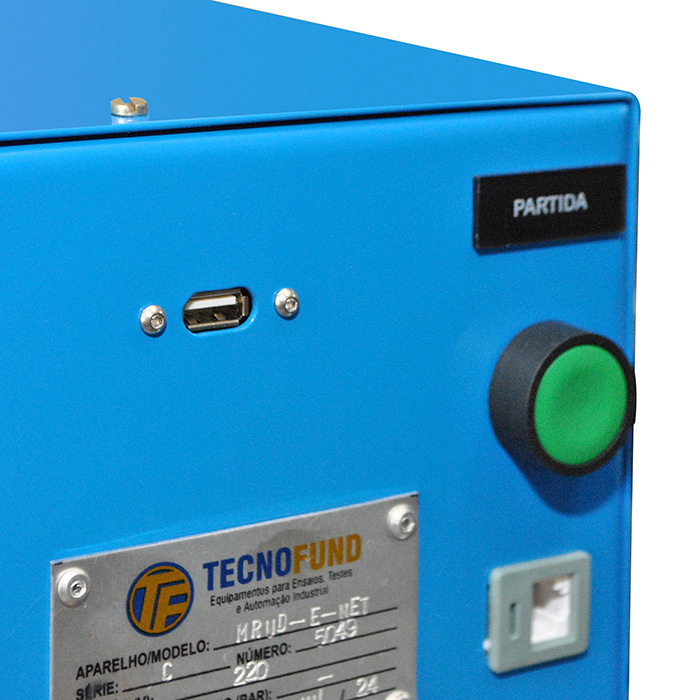

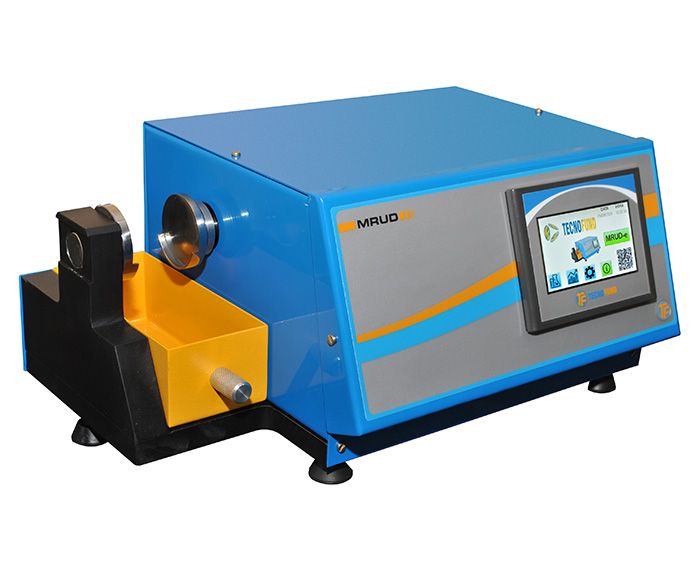

Model MRUD-e
Model MRUD-e-NET

ELECTRONIC UNIVERSAL SAND COMPRESSIVE STRENGH

Performs the compression tests green.

SPECIFICATIONS
  • Measuring range: 0 – 99,00 N/cm2 (compressive strength)
  • Range resolution: 0,01 N/cm2
  • Uses metric ou AFS specimens
  • Includes compressive strength accessories
  • Power requirements: 230 V / 50-60 Hz / 150w
  • Results in N/cm2, Kgf/cm2 or psi
  • Print data in label or sent to the PC via cable
  • Dimensions: 45 x 25 x 23cm
  • Weight: 26 kg (57 lb)



OPTIONAL PRINTER (self adhesive label Model)

etiqueta_mrud50

ACCESSORIES:

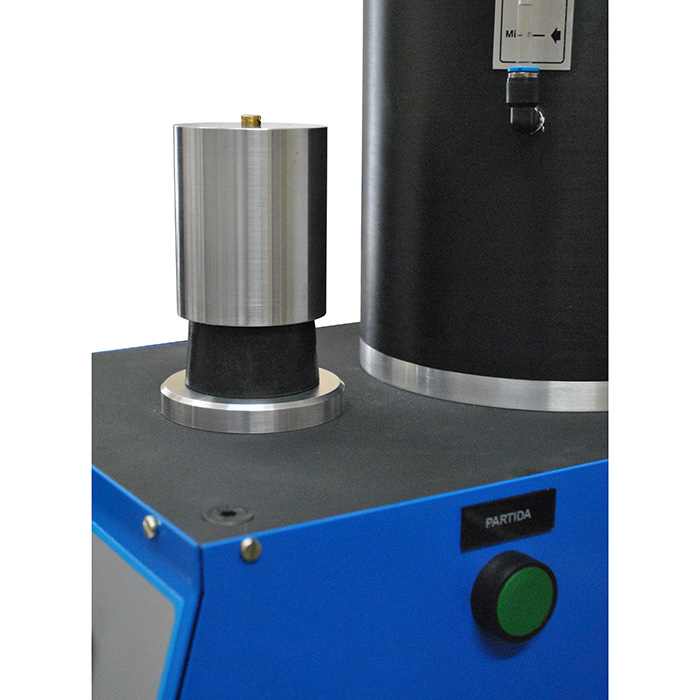

Model PER-e

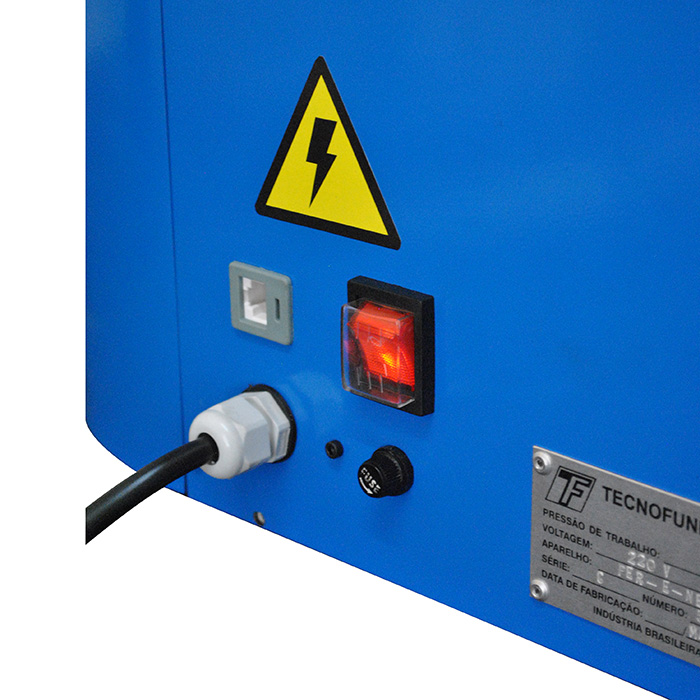

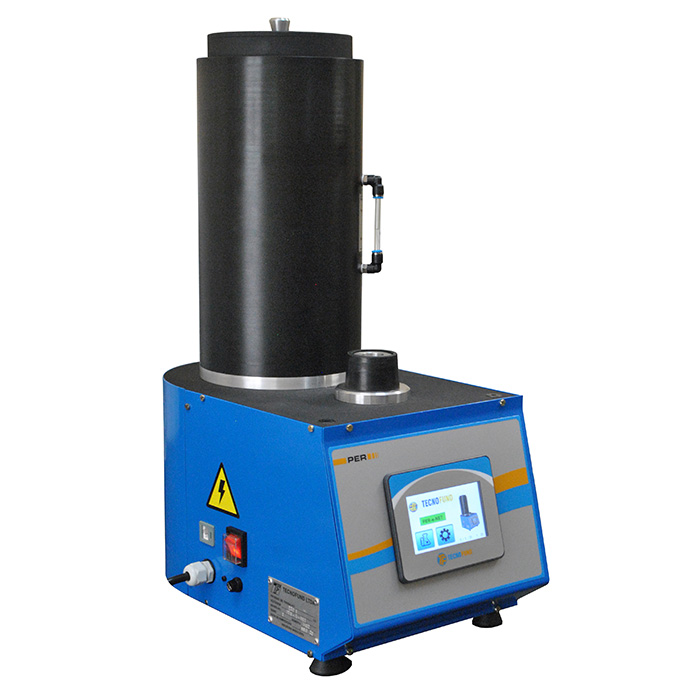

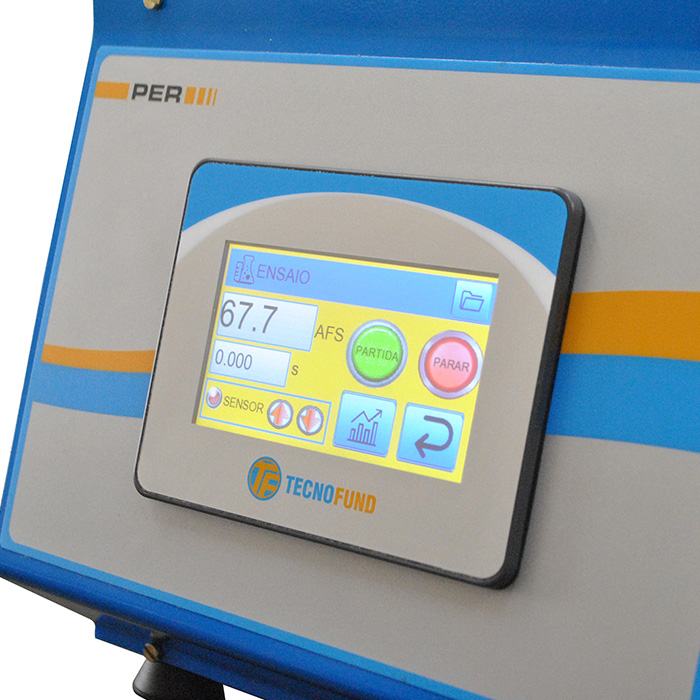

ELECTRONIC PERMMETER

For determination the permeability of clay and/or chemically bonded sand specimens.

SPECIFICATIONS
  • Measuring range: 0 – 999 cm4/g.min. (AFS)
  • Range resolution: 0,1 cm4/g.min. (AFS)
  • Uses Metric ou AFS specimens
  • Calibration standard included
  • Power requirements: 230 V / 50-60 Hz
  • Dimensions: 26 x 54 x 40cm
  • Weight: 22 kg (48 lb)

ACCESSORIES:

AMTU-Net-03-
AMTU-Net-01-
AMTU-Net-02-

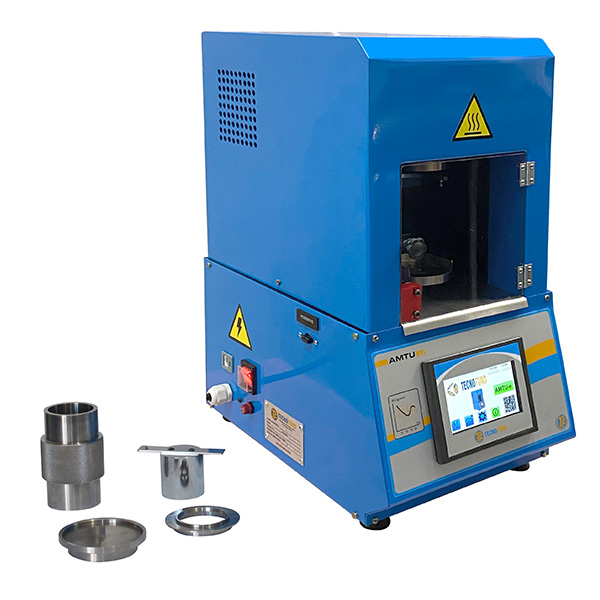

Model AMTU-e
Model AMTU-e-NET

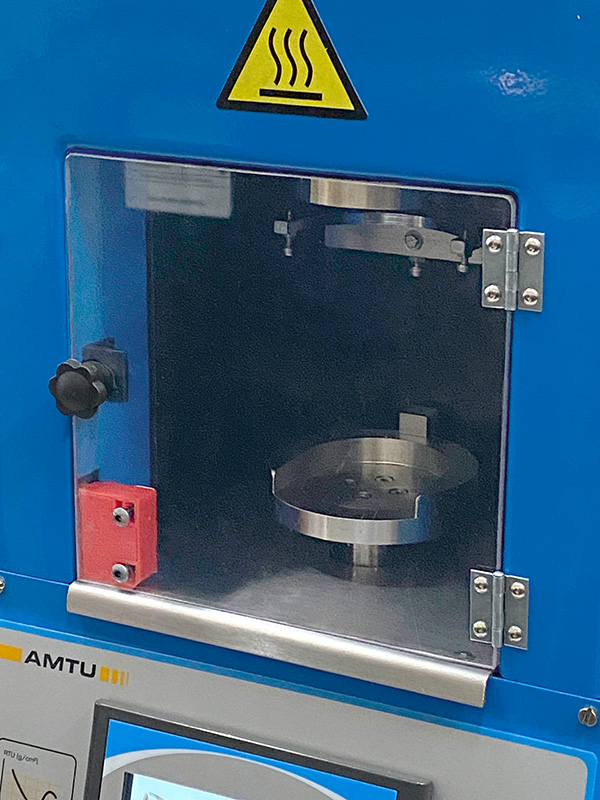

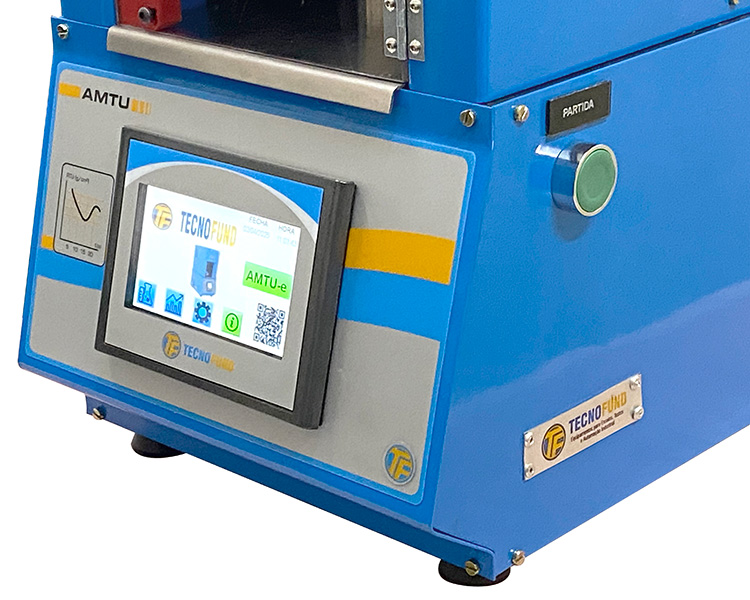

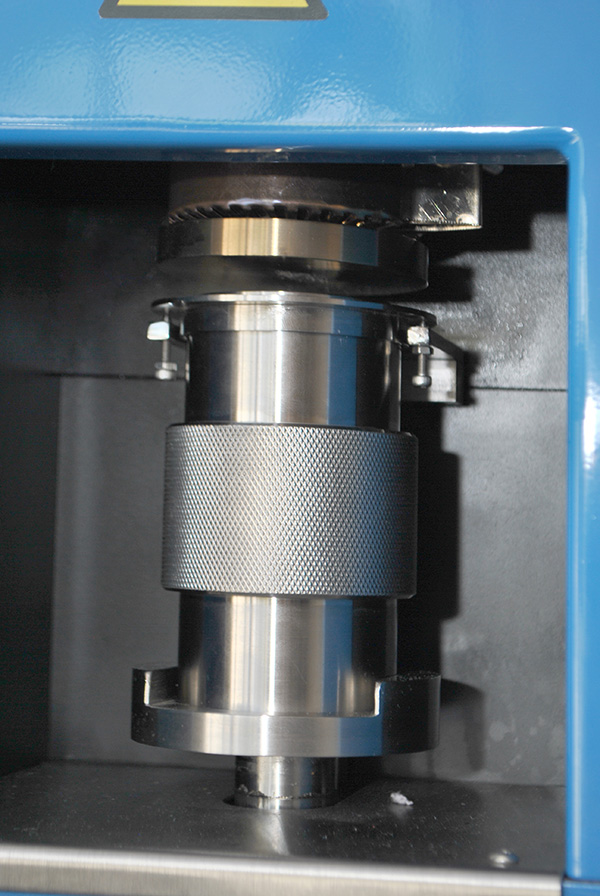

WET TENSILE STRENGHT TESTING

Performs the wet tensile strength testing for the evaluation of bentonit e moulding sands

SPECIFICATIONS
  • Measuring range: 0 – 0,600 N/cm2
  • Range resolution: 0,001 N/cm2
  • Heating Temperature: 300°C / 400w
  • Cylindrical standard test specimen AFS ou Metric
  • Includes a calibration standard
  • Power requirements: 220 V / 50-60 Hz / 450w
  • Results in N/cm2, Kgf/cm2 or psi

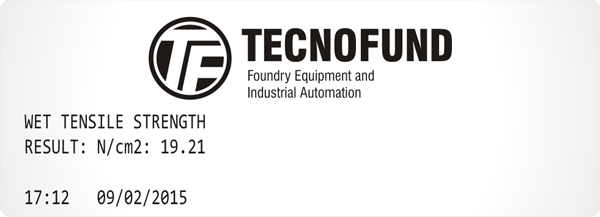

  • Print data in label or sent to the PC via cable
  • Dimensions: 30 x 42 x 50cm
  • Weight: 35 kg (77 lb)

OPTIONAL PRINTER (self adhesive label Model)

etiqueta_amtu_

AMTV-NET2
AMTV-NET

Model AMTV-e
Model AMTV-e-NET

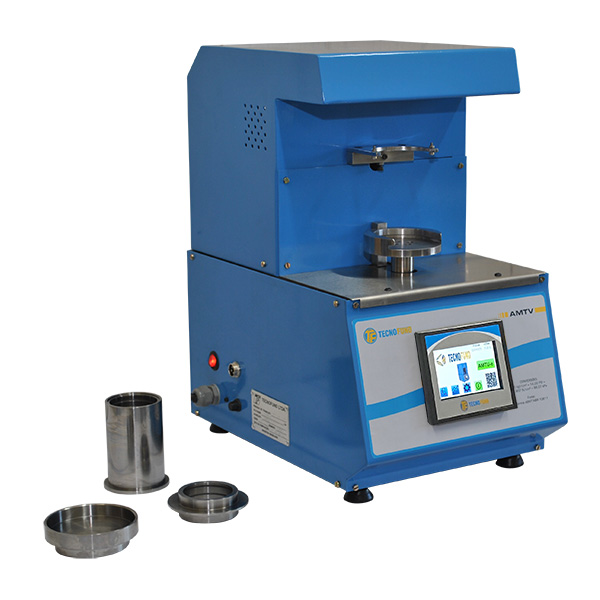

ELECTRONIC TENSILE STRENGTH TESTING

Performs the tensile strength testing for the evaluation of bentonit e moulding sands.

SPECIFICATIONS
  • Measuring range: 0 – 3,00 N/cm2
  • Range resolution: 0,01 N/cm2
  • Cylindrical standard test specimens AFS ou Metric
  • Power requirements: 220 V / 50-60 Hz
  • Dimensions: 26 x 46 x 38cm
  • Weight: 28kg (62 lb)
ML-NOVO-01
ML-NOVO-07
ML-NOVO-02
ML-NOVO-03
ML-NOVO-04
ML-NOVO-05
ML-NOVO-06

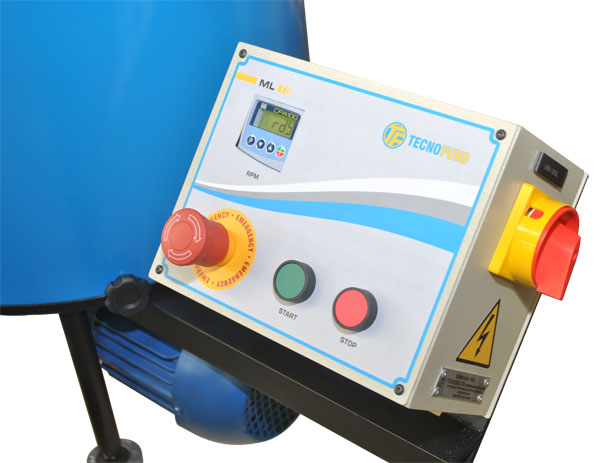

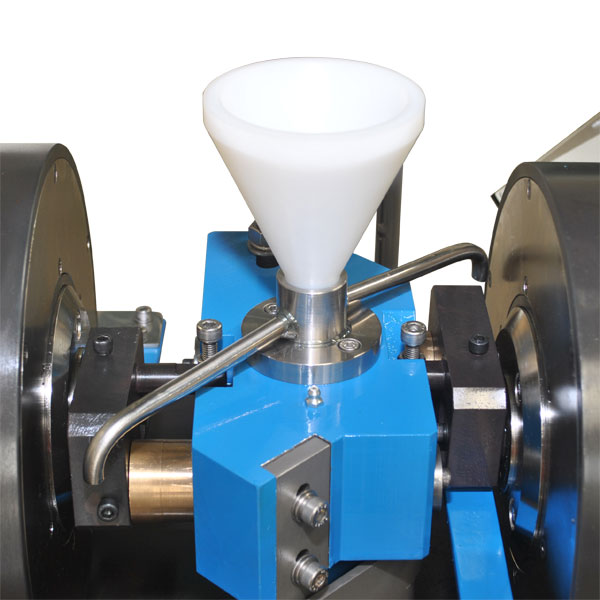

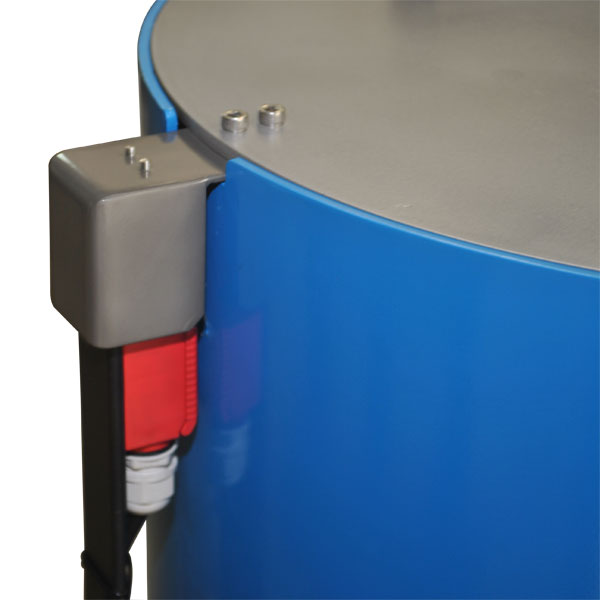

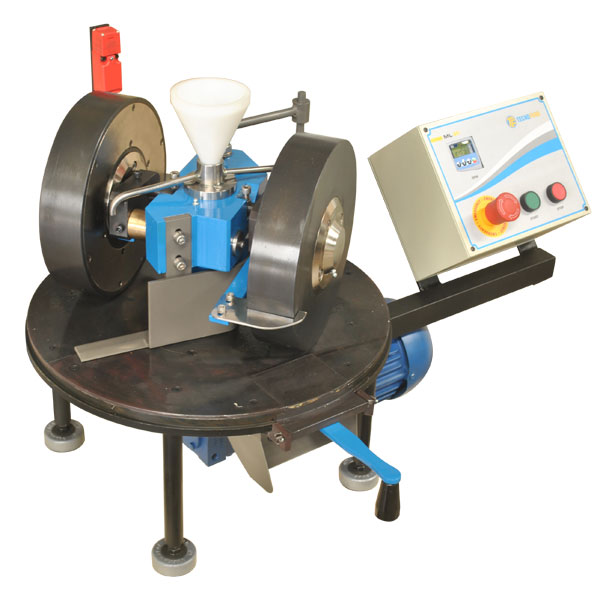

Model ML

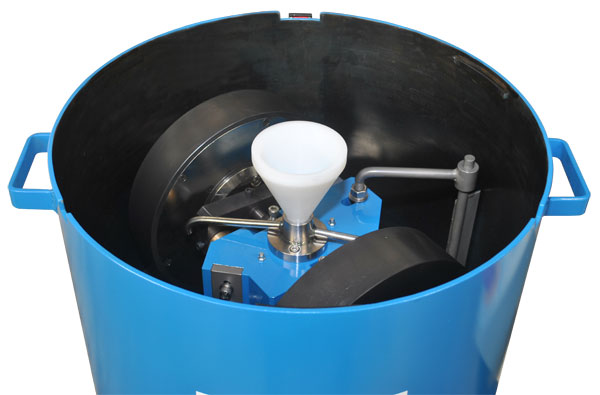

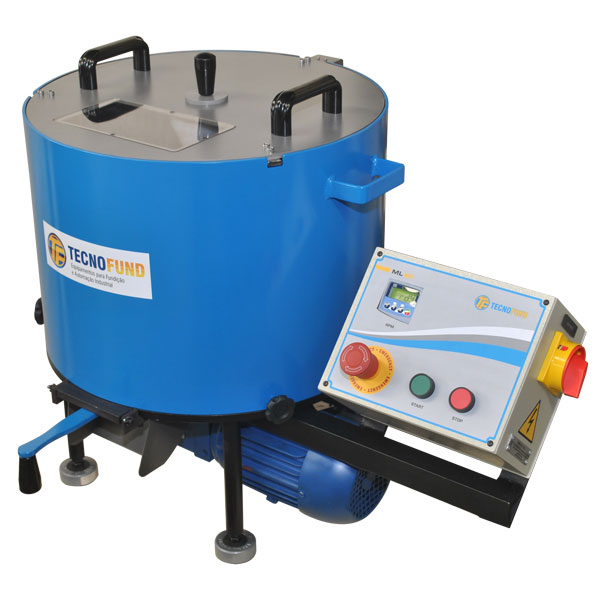

LABORATORY MULLER

Used to prepare mixtures of clay bonded foundry sands.

SPECIFICATIONS
  • Capacity: 7 kg ( 15.4 lb) silica molding sand
  • Body and cover removable for easy clean
  • Front opening for rapid discharge
  • Speed: 40 – 44 rpm

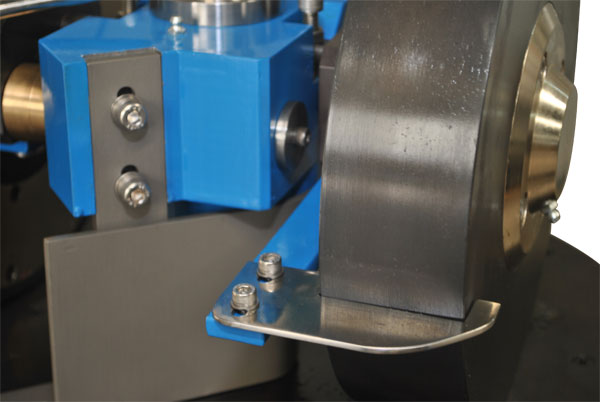

  • Mulling wheels with independent suspensions
  • Power requiriments: 220/380v
  • Weight: 130 kg (286 lb)
sla-novo01
sla-novo02
sla-novo03
sla-novo04
sla2-novo

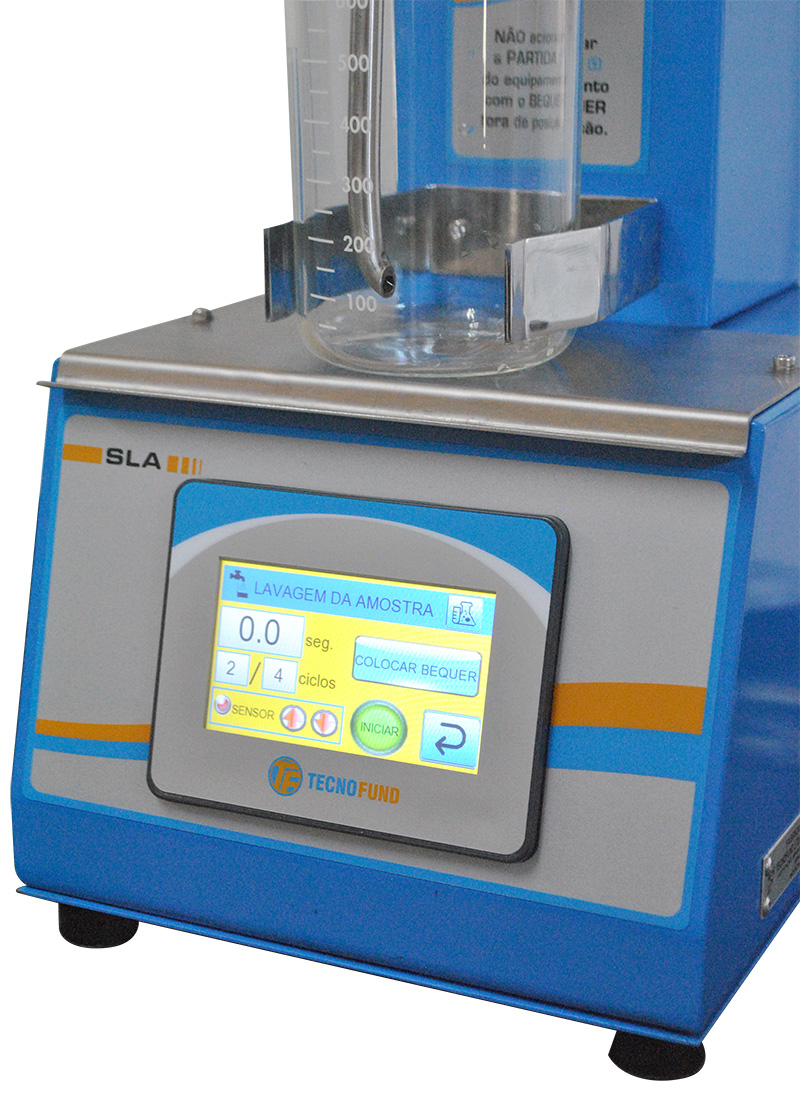

Model SLA-e

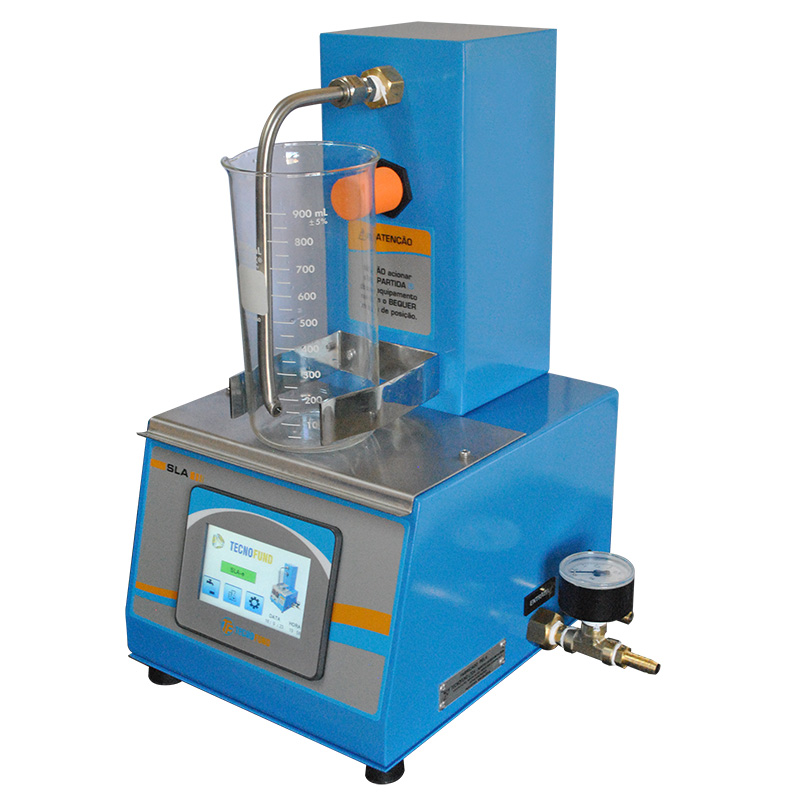

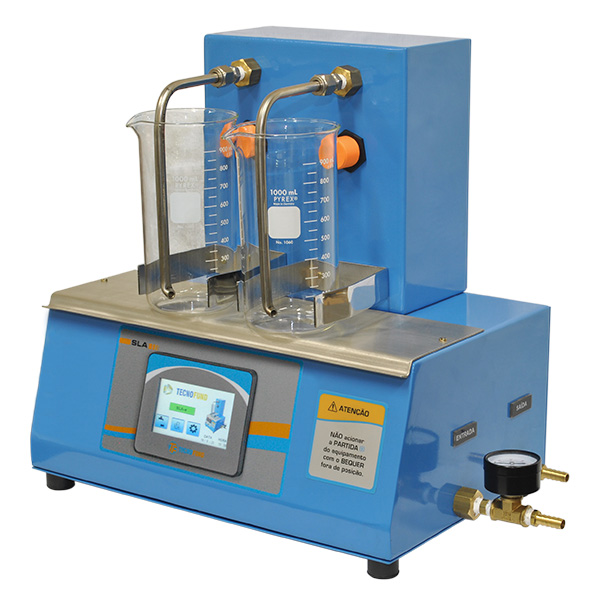

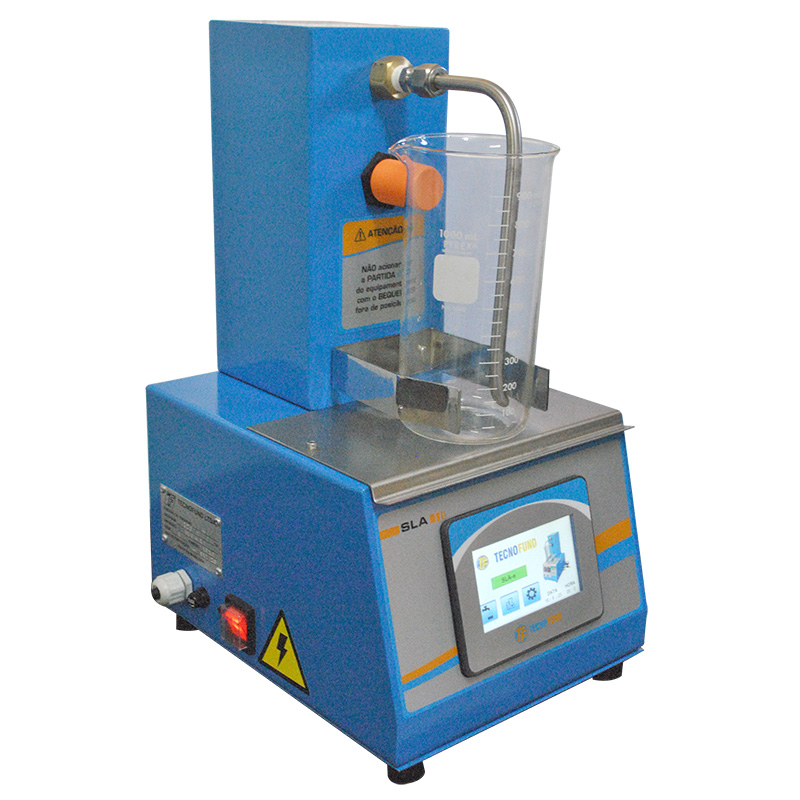

AUTOMATIC AFS CLAY WASHER

For determining the percentage os AFS clay substance by scrubbing clay from sand grains, in accordance with the AFS fineness test.

SPECIFICATIONS
  • Automatic filling and draining.
  • Digital controls of test time and cycles counter
  • Includes 01 beaker (1000 ml)
  • Power requirements: 230 V / 50-60 Hz
  • Weight: 10 kg (22 lb)

Model AMR

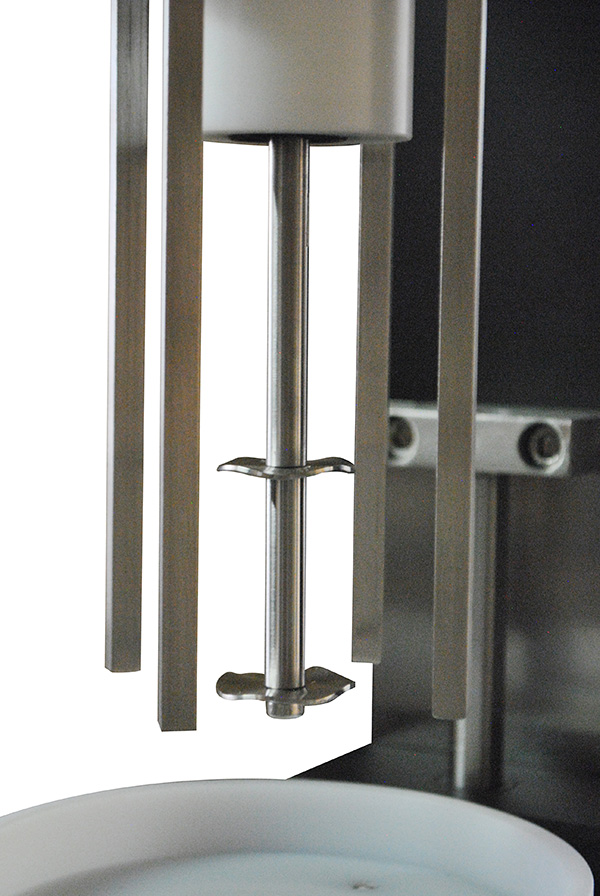

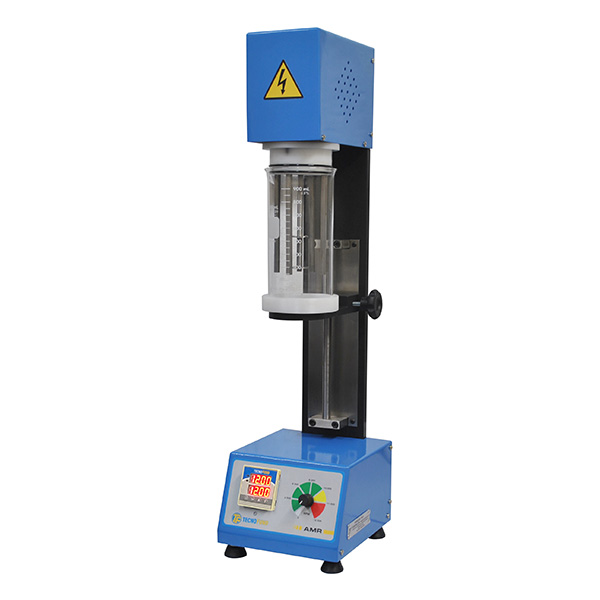

AGITATOR

To determine the finescontent, particles of size < 0,02 mm must be separated from the grains ans brought into suspension. This requires intensive and thorough agitation of the prepared sample.

SPECIFICATIONS
  • Variable speed: 5.000 a 12.000rpm
  • Shaking/RPM time digital control and automatic shutdown
  • Power requirimets: 220v / 60Hz / 450w
  • Weight: 20kg (44 lb)

Model DDT-B

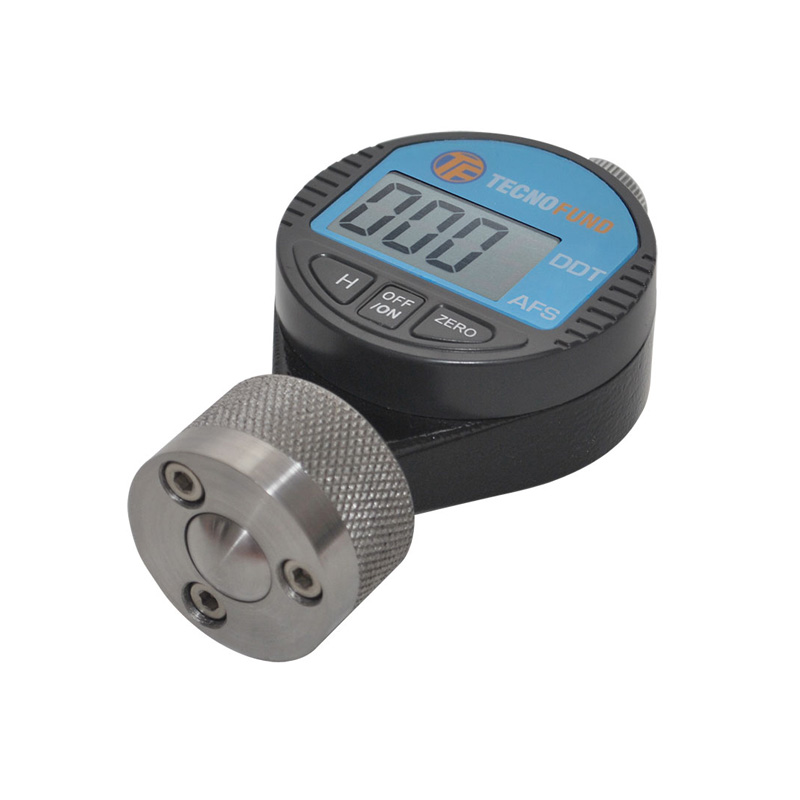

ELECTRONIC GREEN HARDNESS TESTER

For green sand process: Measures the resistance offered by the surface of a prepared sand mold to be penetrated by a loaded plunger. For chemically bonded sand process: Measures  the mixture bench life.

SPECIFICATIONS
  • Measuring range: 0 – 100 AFS (B or C scales)
  • Direct reding with lock system
  • Scale B – AFS (median pressure)
  • Uses 1-SR44 Button Cell Battery
  • Weight: 0,2 kg (0,44 lb)

Model DDT-C

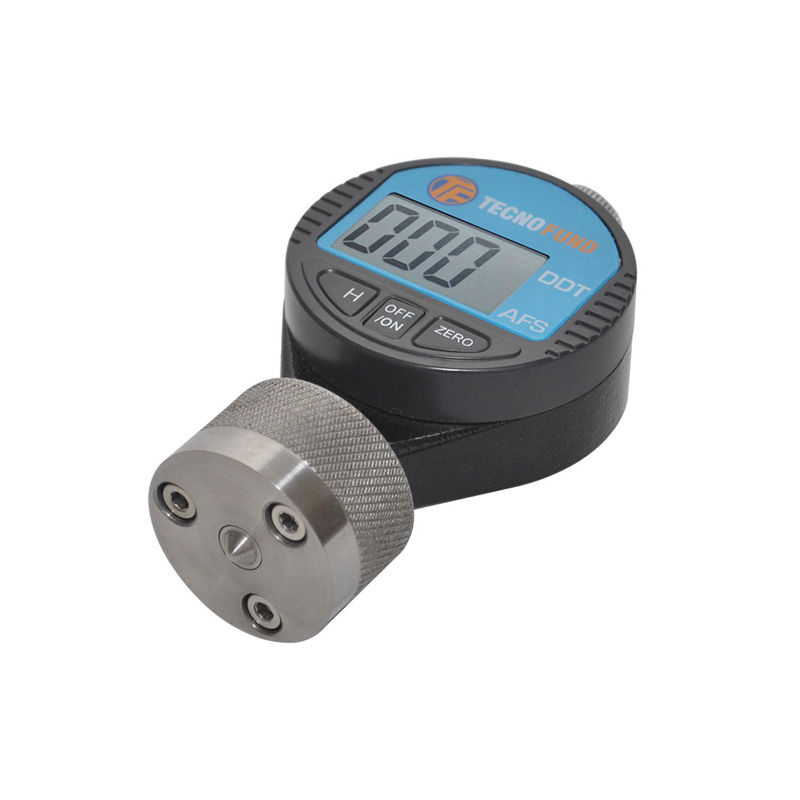

ELECTRONIC GREEN HARDNESS TESTER

For green sand process: Measures the resistance offered by the surface of a prepared sand mold to be penetrated by a loaded plunger. For chemically bonded sand process: Measures  the mixture bench life.

SPECIFICATIONS
  • Measuring range: 0 – 100 AFS (C scale)
  • Direct reding with lock system
  • Scale C – AFS (high pressure)
  • Uses 1-SR44 Button Cell Battery
  • Weight: 0,2 kg (0,44 lb)
aidu
aidu2

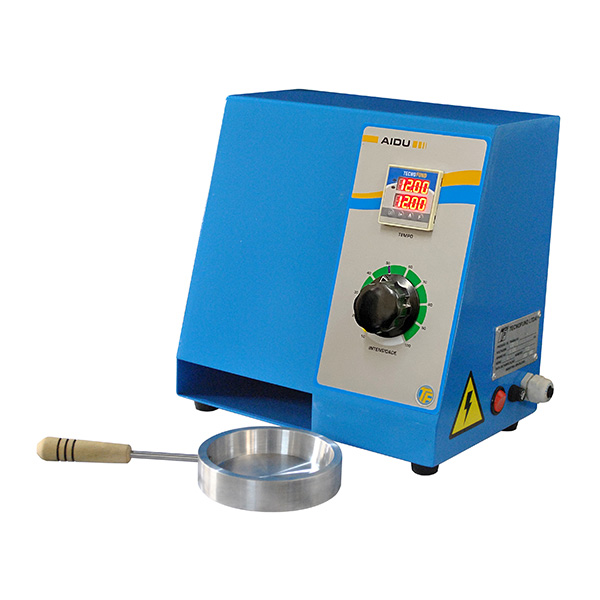

Model AIDU

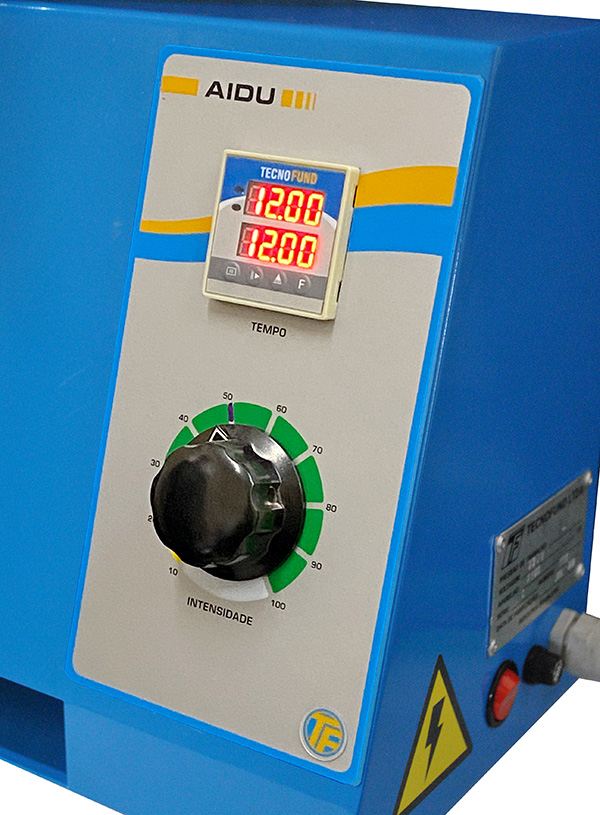

MOISTURE AND/OR SAND DRYING

Performs a drying of sand trough an infra-red lamp.

SPECIFICATIONS
  • Infra-red lamp power: 250 W
  • Digital control assay time with automatic shutdown
  • Have temperature controller intensity
  • Includes aluminum container for sand
  • Power requirements: 220 V / 50-60 Hz
  • Weight: 3 kg (6,6 lb)
aep01
aep02
aep03

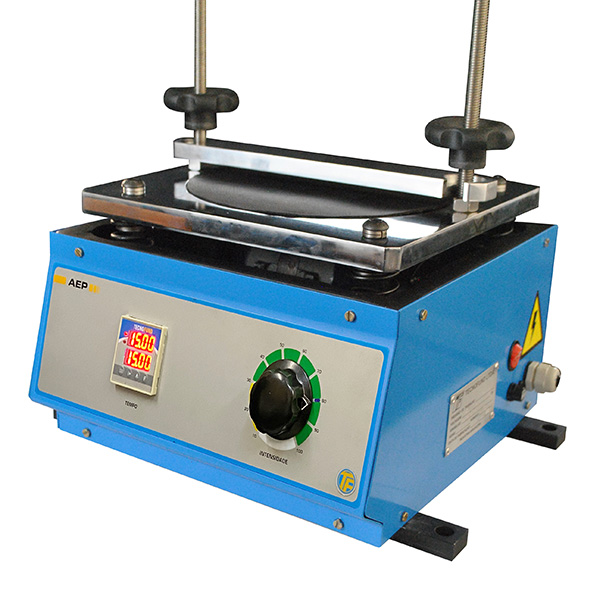

Model AEP

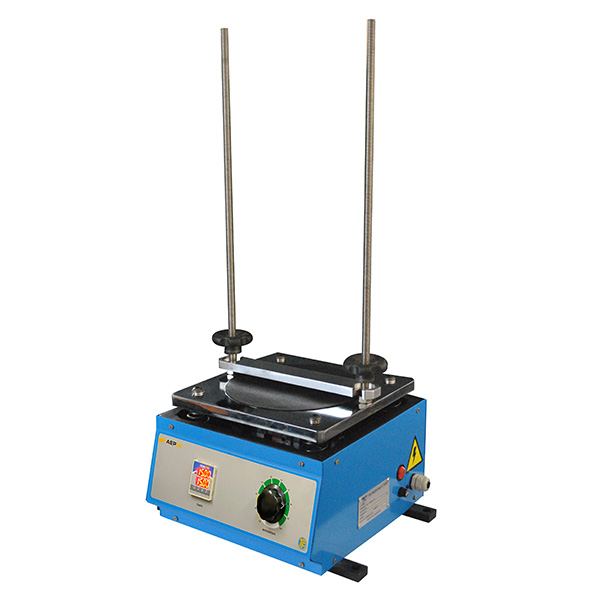

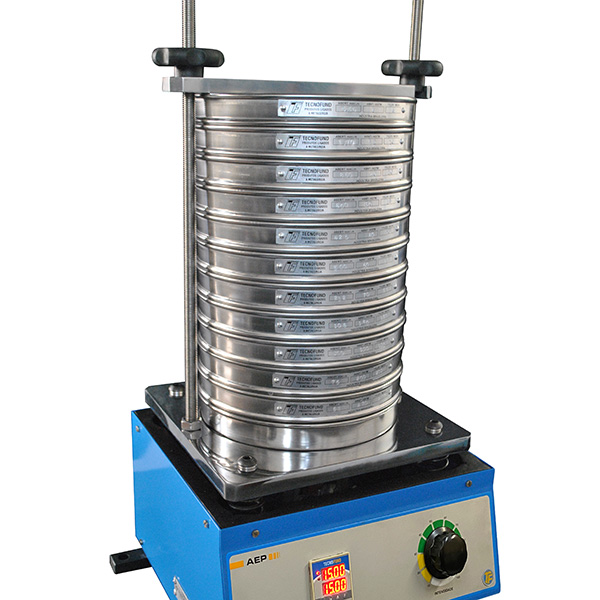

LABORATORY SIFTER

Electro-magnetic vibration sieve machine for the determination of the grain distribution by screening the dried, fine-free sand.

SPECIFICATIONS
  • Timer with automatic shutoff.
  • Electromechanical vibration system with intensity control
  • Power requirements: 220 V / 50-60 Hz
  • Weight: 58 kg ( 127,6 lb)

SIEVES NOT INCLUDED

ACCESSORIES:



Model DAM

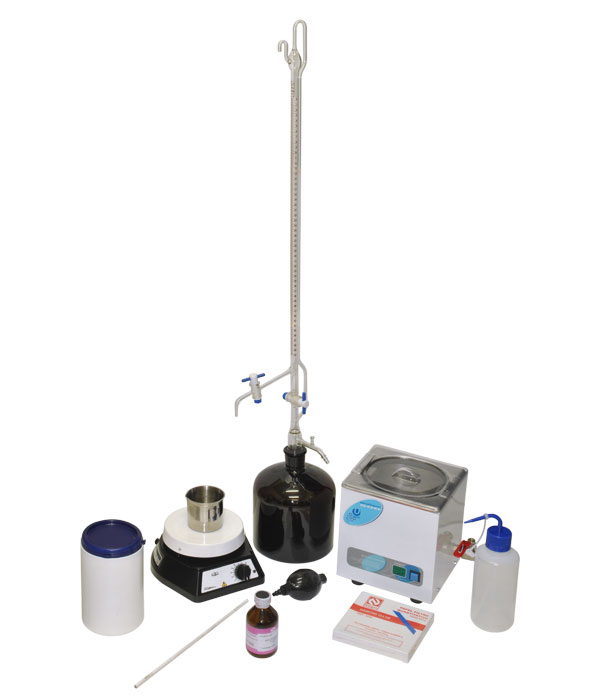

METHYLENE-BLUE CLAY TESTER

For fast, exact determination of the live clay content in the sand system; control of systems with fireclay.

SPECIFICATIONS

Kit consisting of:

  • Automatic 50 ml burette, ultrasonic scrubber, eletromagnetic agitator, stainless steel beaker, dropper rod, required chemicals and one filter paper box.

Model ME-e
Model ME-e-NET

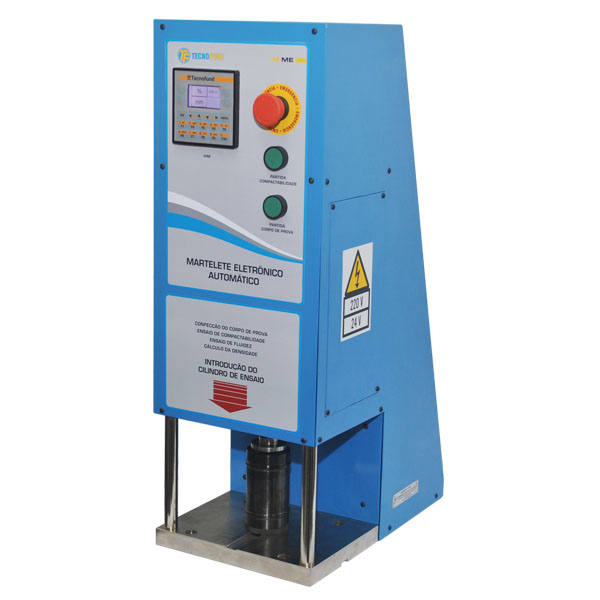

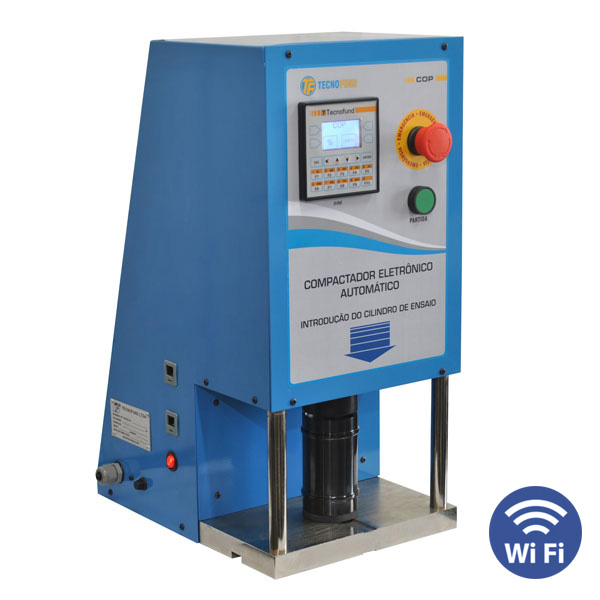

AUTOMATIC SAND RAMMER

With this equipment it is possible to automatically:

  • Prepare specimens
  • Compactability test
  • Flowability test
  • Calculation of density

This equipment eliminates the variations in results from the operator.

SPECIFICATIONS
  • Fully electronic equipment indicating via IHM
  • Percentage of indication range (%) and millimeters (mm)
  • Range Resolution 0,1 (% or mm)
  • Print data in label or sent to the PC via cable or wireless
  • Includes specimen tube and conditioner.
  • Power requirements: 220v / 60Hz / 300w
  • Dimensions: 69 x 40 x 25cm
  • Weight: 42kg (92 lb)

Model COP-e
Model COP-e-NET

DIGITAL SAND SQUEEZER

With this equipment it is possible to automatically compactability test. This equipment eliminates the variations in results from the operator.

SPECIFICATIONS
  • Fully electronic equipment indicating via IHM
  • Range of indication of 20 to 70, percentage (%)
  • Range Resolution 0,1 (% or mm)
  • Print data in label or sent to the PC via cable or wireless
  • Includes specimen tube and conditioner.
  • It requires compressed air. Working pressure of 4 to 6 bar.
  • Power requirements: 220v / 60Hz / 300w
  • Dimensions: 26 x 36 x 54cm
  • Weight: 23kg (50 lb)

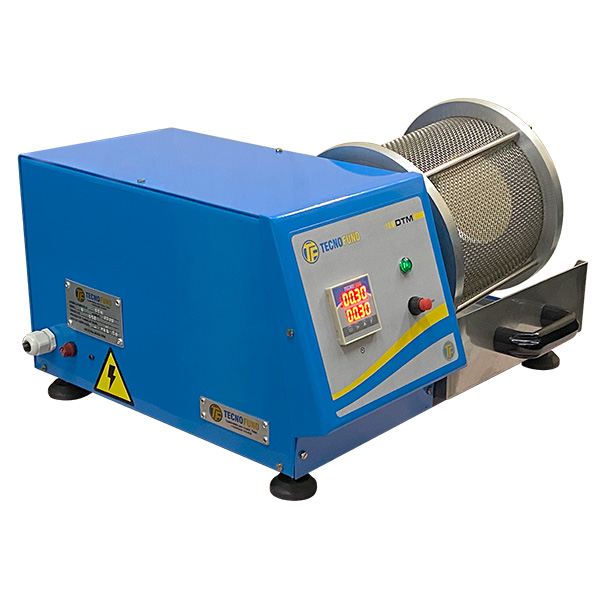

Model DTM

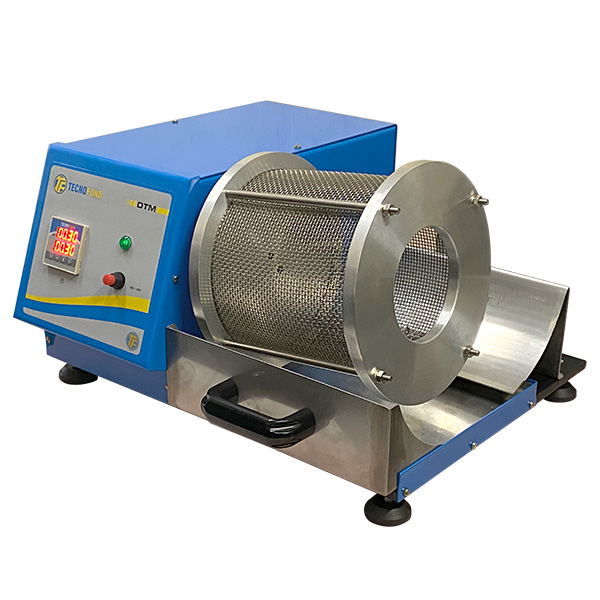

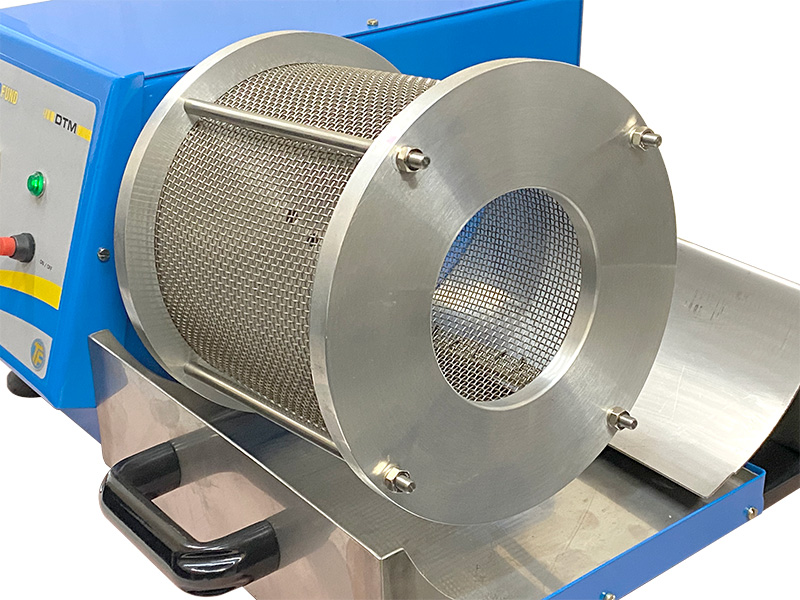

MOLDABILITY OF MOLDING SAND MIXTURES AND FRIABILITY TESTER

The Moldability and Friability tester are used to determine the surface integrity of the molding sand.

SPECIFICATIONS
  • Engine rotation from 57 rpm
  • Cage with angle 7 and screen with standard opening AFS
  • Digital control assay time with automatic shutdown
  • Power requirements: 220 V / 50-60 Hz
  • Weight: 15 kg (33 lb)
DVG_ELETRONICO-COM-PAINEL-NOVO
DVG_ELETRONICO-COM-PAINEL-NOVO---detalhe01
DVG_ELETRONICO-COM-PAINEL-NOVO---detalhe02
DVG_ELETRONICO-COM-PAINEL-NOVO---detalhe03
DVG_ELETRONICO-COM-PAINEL-NOVO---detalhe04
DVG_ELETRONICO-COM-PAINEL-NOVO---detalhe05

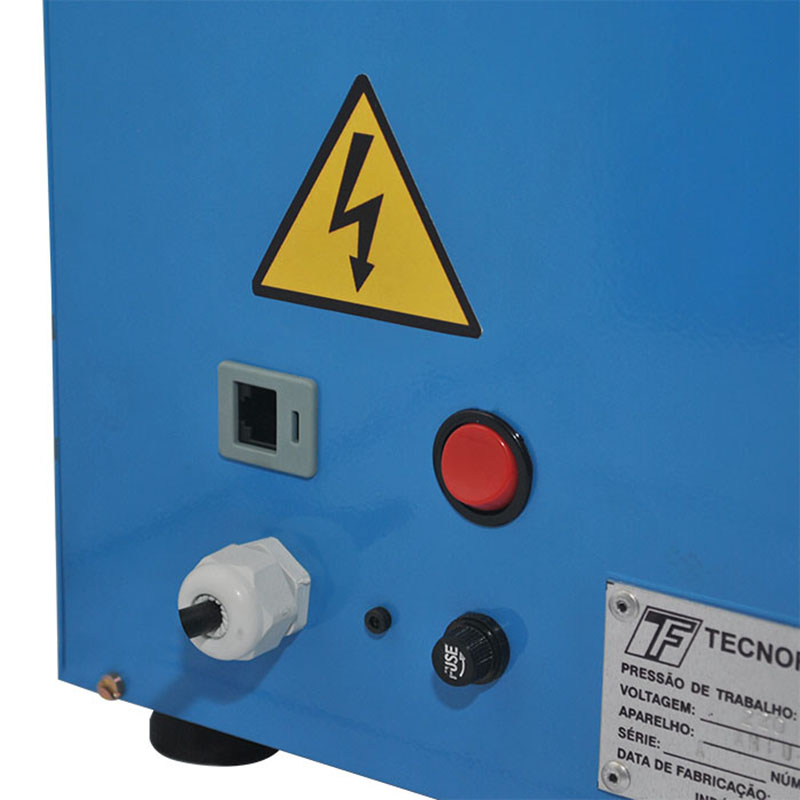

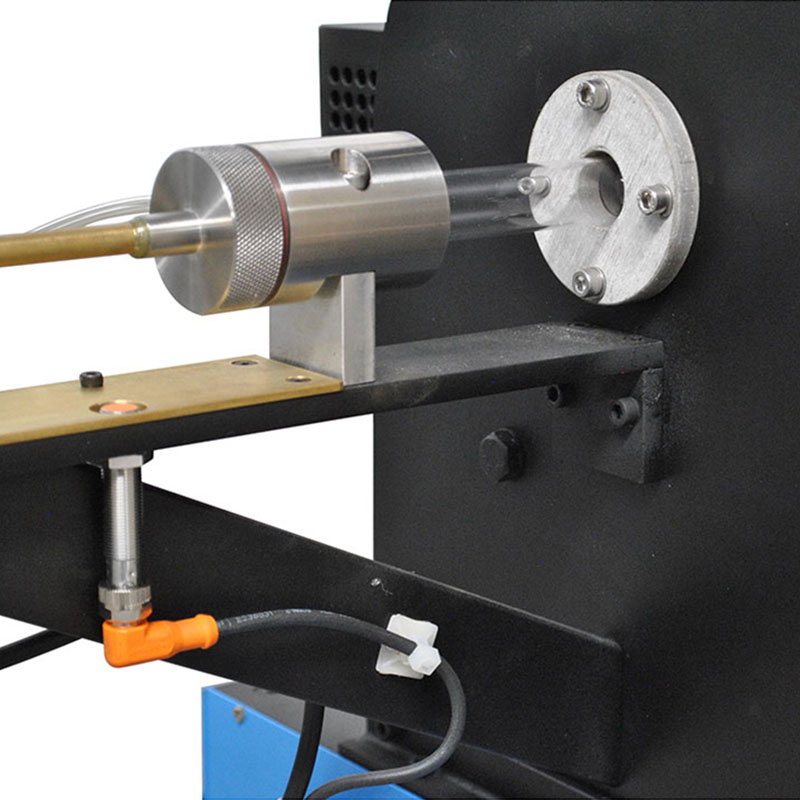

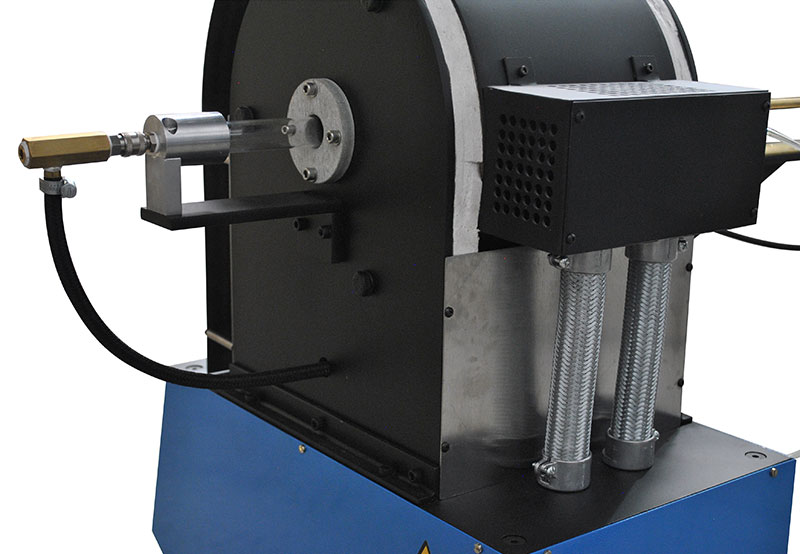

Model DVG-e
Model DVG-e-NET

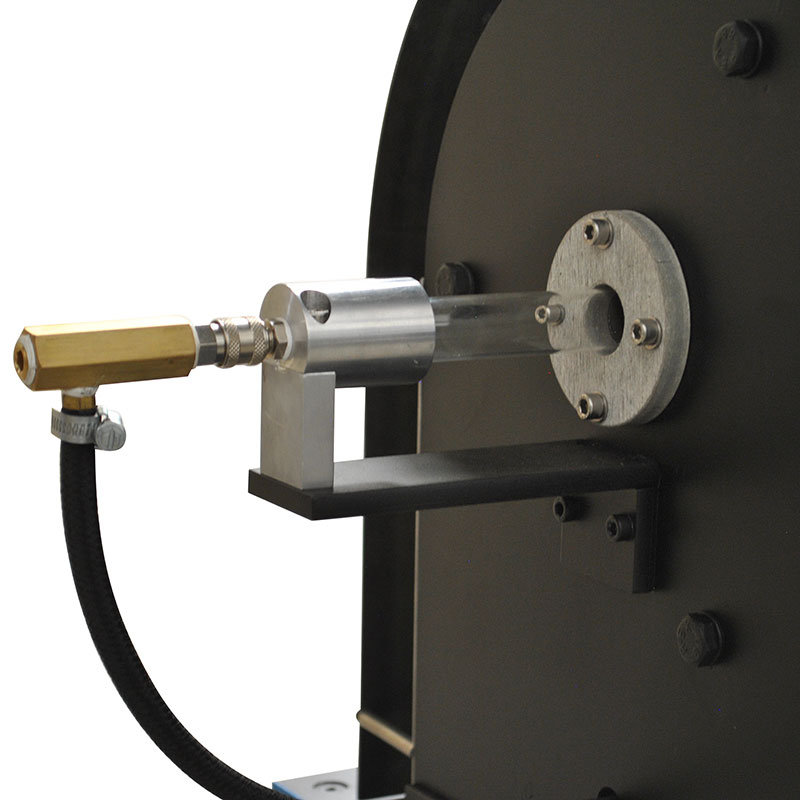

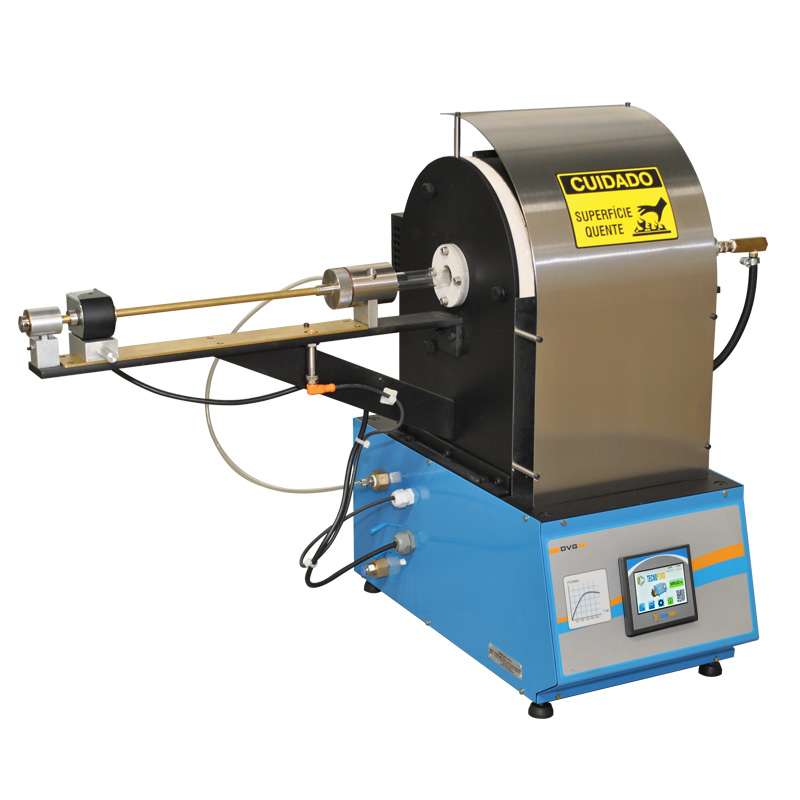

GAS PRESSURE AND VOLUME MEASURING DEVICE

This device serves to measure the gas pressure and, indirectly, the gas volume (the sum of all gasses) on various foundry materials.
With a special software (included) the pressure diagram can be displayed on a computer.

SPECIFICATIONS
  • Fully electronic equipment indicating via IHM with temperature control, pressure and test time
  • Digitals controls:
    – Gas pressure range: 0 -250 mbar (0 – 3,60 psi)
    – Test temperature: 0 to 1100° C
  • Cylindrical furnace with metal resistors and isolated with ceramic blanket.
  • Nitrogen gas required: 2 -4 bar (28 – 56 psi)
  • Power requirements: 220 V / 50-60 Hz / 1500 w
  • Dimensions: 35 x 80 x 80cm
  • Weight: 45 kg (99 lb)

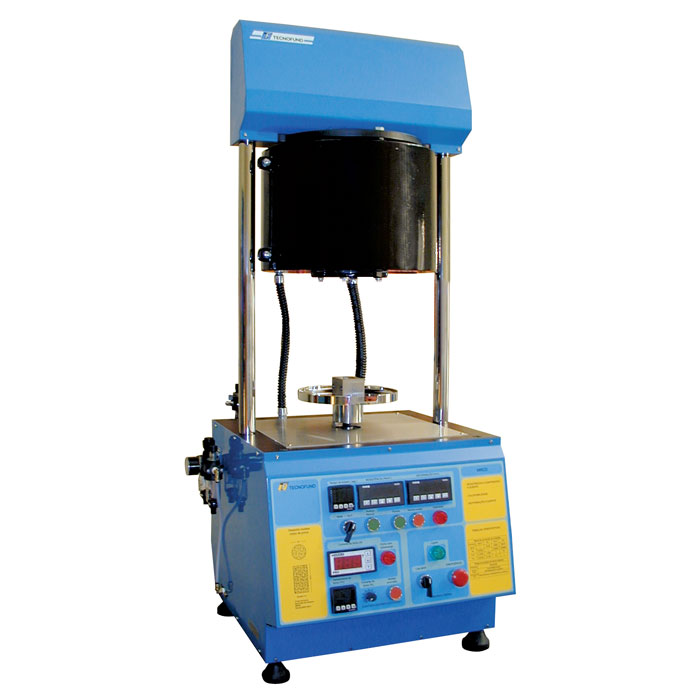

Model MRCD

DIGITAL  DILATOMETER

For determination of the hot compression strength, hot collapsibility and hot deformation

SPECIFICATIONS
  • Hot compression strength
  • Measuring range: 0 – 320 N/cm2 (resolution 0,1 N/cm2)
  • Hot deformation
  • Measuring range: 0 – 9,999mm (resolution 0,001mm)
  • Furnace temperature range: 0 – 1200°C (resolution 1°C)
  • Power requirements: 230 V / 50-60 Hz (900W)
  • Compressed air required: 6 bar (85 psi)
  • Weight: 100 kg (220 lb)

Model SLM

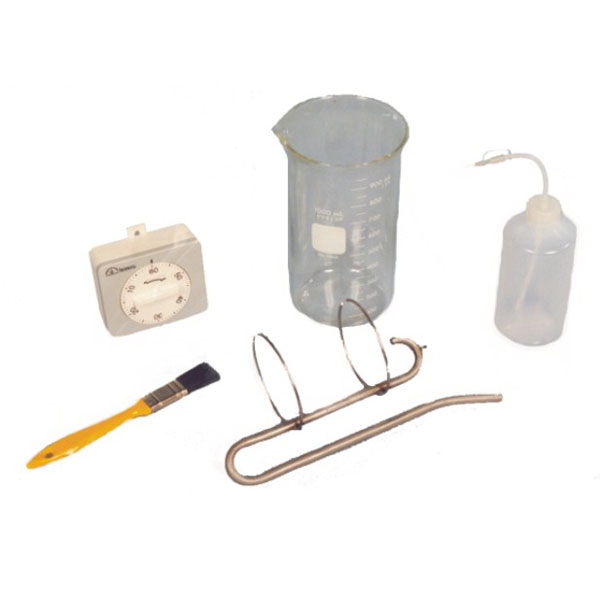

MANUAL AFS CLAY TESTER

For determining the percentage os AFS clay substance by scrubbing clay from sand grains, in accordance with the AFS fineness test.

SPECIFICATIONS

Kit consisting of:

  • beaker (1000ml)
  • 60-min. Timer
  • brush
  • syphon tube with spring clip
  • rinsing bottle (500ml)

Model EDU

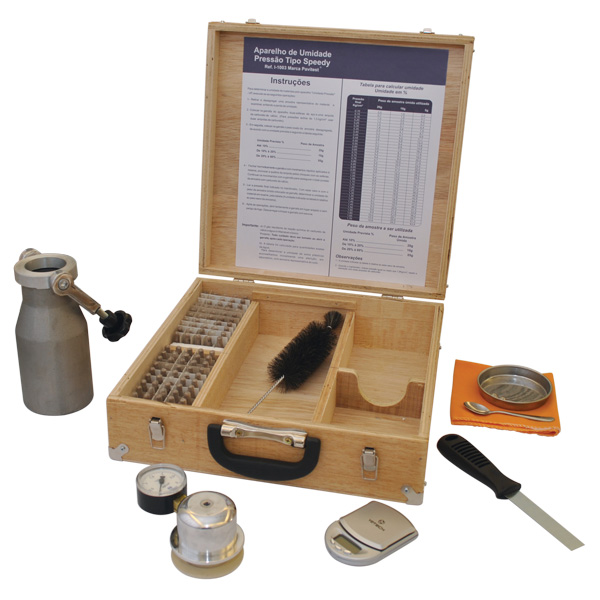

SPEEDY MOISTURE TESTER

Determines the moisture content in foundry sand mistures and additives with calcium carbide method.

SPECIFICATIONS

Kit consisting of:

  • Shaker bottle with cap manometer
  • Digital balance
  • Spatula, spoon e nylon brush
  • Metal plate
  • 100 ampoule calcium carbide reagent
balanca_semianalitica
balanca-

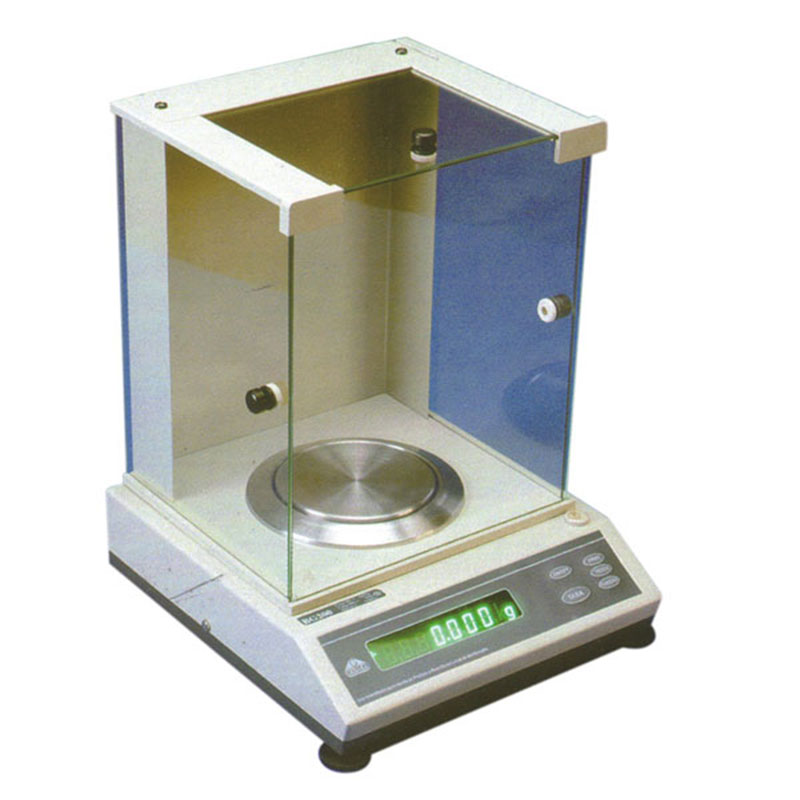

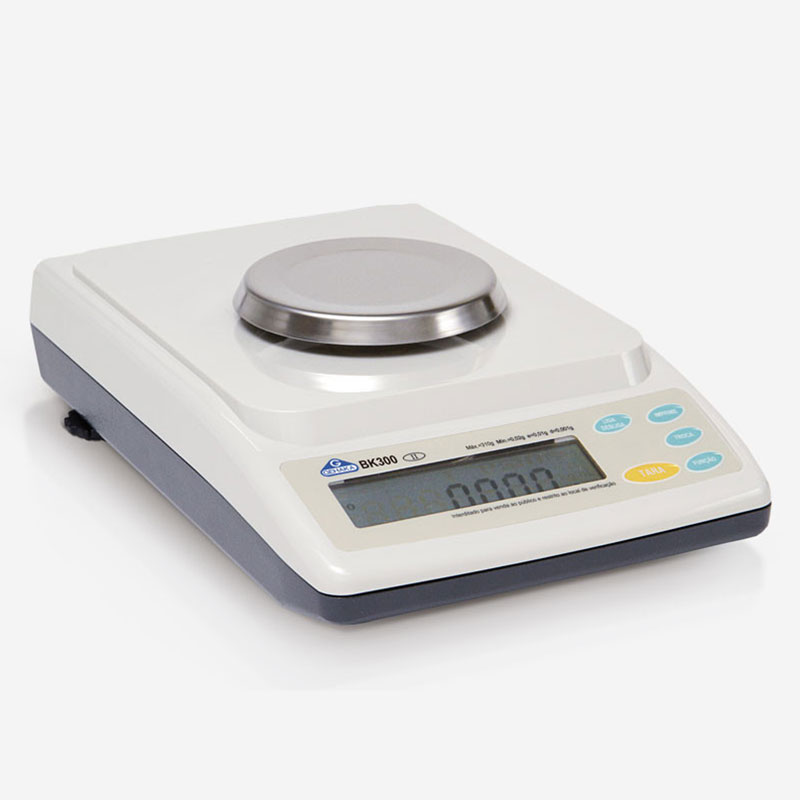

LABORATORY SCALE

Semi analytical and analytical scale

SPECIFICATIONS
  • Capacity of 200 to 10,000 g
  • Sensitivity to 0,00001g
  • Bivolt
  • Optional Chapel
  • Shutdown and automatic tare

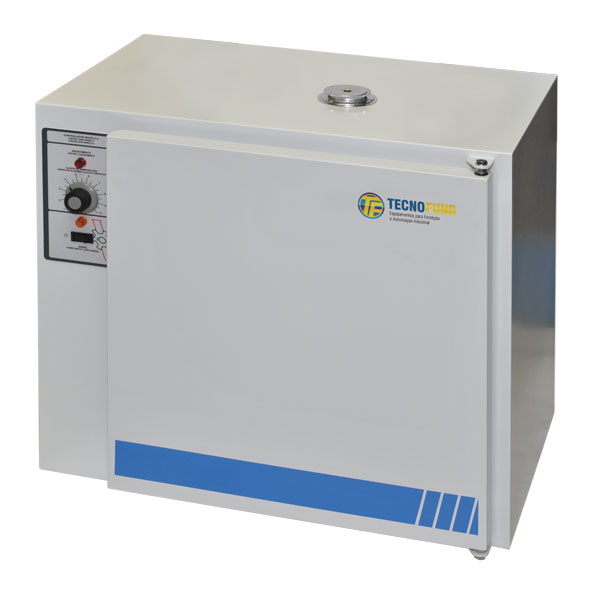

DRYING CABINET

SPECIFICATIONS
  • For drying sand samples or test specimen
  • With electronic regulator, analogue or digital display.
  • Items with other specifications on request.
